Metal Keypad RFID QR Code Reader 13.56MHZ IC Card Reader - R30S-MF-Access Control RFID Readers, proximity card reader,mobile QR code EM or Mifare reader,face fingeprint device,time attendance

Products Description

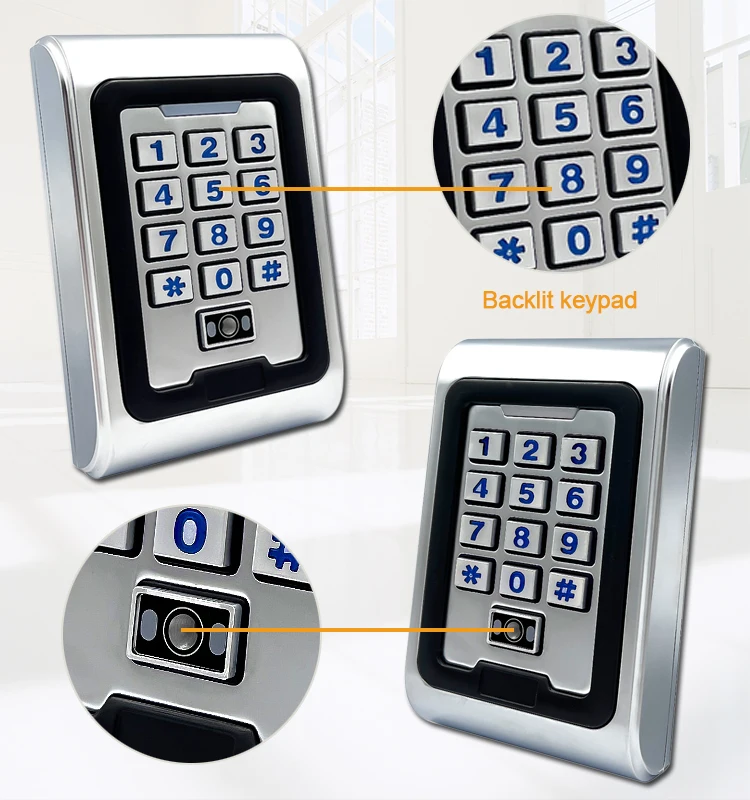

Keypad QR Code RFID Card Reader

Metal Keyboard RFID QR Code Reader is our independent research and development production, good performance QR code+RFID Card
Access Control.Advanced CMOS image recognition technology, intelligent image recognition system, high speed scan code,QR code + card + password three ways to open the door.

It can also be used as a stanalone controller

Feature：

Qr code, MF cards or password open the door Card Type: MF 13.56mhz(IC Card)

Wiegand 26/34 RFID Reader Metal case,Waterproof

With back light keypad

stanalone controller for optionalPWA web App Register: https://web.fondcard.net/pwas/index.html#/

App Name:Quickopen

With access control relay

10,000 user

Parameters: Reading Mode: CMOS Accuracy: ≥ 5mil Voltage: DC 5~12V Comes with a filling light, automatically fills light when dark QR Code Recognition Time: Less than 0.5 second Signal Input: 1 set of open-door buttons Card Reading Distance: 3~6cm Card Reading Time: ≤0.3s With Buzzer

Dynamic QR Code Standalone Controller
Products Features	communication		Offline
	Management		6 digit Password （Q10-C/Q non-keypad no this function）
	App		Quicklopen
	Reading card type		MF Card
	Reading Range		MF:1～3cm，QR Code:1～20cm
	Card Capacity		≥10000 cards
	Door opening mode		App,Card,Password（Q10-C/Q non-keypad no this function）
	Prompt mode		Buzzer sound, Blue work light on, green light flashes
	Camera pixel		300000 pixels
	Scan resolution		640*480
	Reading angle		Rotate 360 °, tilt ± 45 °, deflection ± 45 °
	Keypad Type		Press （Q10-C/Q Non-keypad）
	Open door time		0～99s
	Door ell function		with Doorbell button（Q10-C/Q no Doorbell keypad）
Electrical parameters	Work voltage		DC12V
	Work current		100mA
Appearance and packing	Color and material		Black Plastic ABS
	Size		120×80×18（mm）
	Install hole space		60 mm
	Packing list		（Dynamic QR Code Standalone Controller 8P wire、manual）×1
Working environment	Working temperature		-10~60℃
	Working humidity		5%-85%

8P Socket Wire connection	Wire S/N	Color	Interface	illustrate
	1	Red	DC12V	Cathode
	2	Black	GND	GND
	3	Yellow	NC	Relay NC
	4	White	COM	COM
	5	Black	NO	Relay NO
	6	Green	OPNE	Exit button
	7	Yellow	BEEP	Doorbell
	8	Blue	BEEP
