Embedded QR Code Scanning Module USB card reader Barcode Scanner Identification Module Access Control Bar Code QR Reader

Multi function RFID QR code scanner access control products, Metal case, plastic case, waterproof, EM ID card, IC card,Wiegand 26/34,RS232,RS485,USB, TCP-IP, Free software and SDK

Product Description

  Embedded QR code scanner reader is a new generation of intelligent device with high integration and excellent performance, which integrates embedded QR code scanning and card swiping. It adopts advanced CMOS image recognition technology and intelligent image recog nition system, high code scanning recognition rate, fast speed, sensitive card swiping response, strong compatibility, integr ated and compact design, and can be easily embedded into all kinds of equipment. It can be used in the fields of QR code scanning recognition, IC card reading, QR code payment system, access control system, vending machine, smar t home, lockers and so on.

Features

1.wide angle design is applicable to all kinds of QR code scanning, automatic induction, high-speed code scanning, plug
and play, convenient and fast
2. super error correction decoding, data transparent transmission, accurate reading of color code, flower code, deformation code and stain code
3. multiple output modes: USB virtual serial port, TTL, WG26 / 34, RS232, RS485, suitable for many industry application
scenarios
4.No need programming, connect the computer to install USB driver, and set and debug through USB port
5. good reading performance, with its own white light fill in lamp, it can easily read both screen and paper codes
6. it supports swiping CPU card, IC card, second-generation ID card, mobile NFC and other sensing cards
7.Tempered glass panel, small size, embedded appearance design, easy to integrate into other equipment
8.products can be customized, secondary development, provide detailed technical support and guidance.

The factory default is USB virtual serial port / WG / TTL output. It supports the selection of RS232 or RS485 output. Only one of the two can be selected. The following are three data
output combination modes:
1.  USB virtual serial port / WG / TTL (factory default)
2.  USB virtual serial port / WG / 232 / TTL supports simultaneous use of TTL and 232 (optional RS232)
3.  USB virtual serial port / WG / 485 / TTL supports simultaneous use of TTL and 485 (optional RS485)

Specification

Application

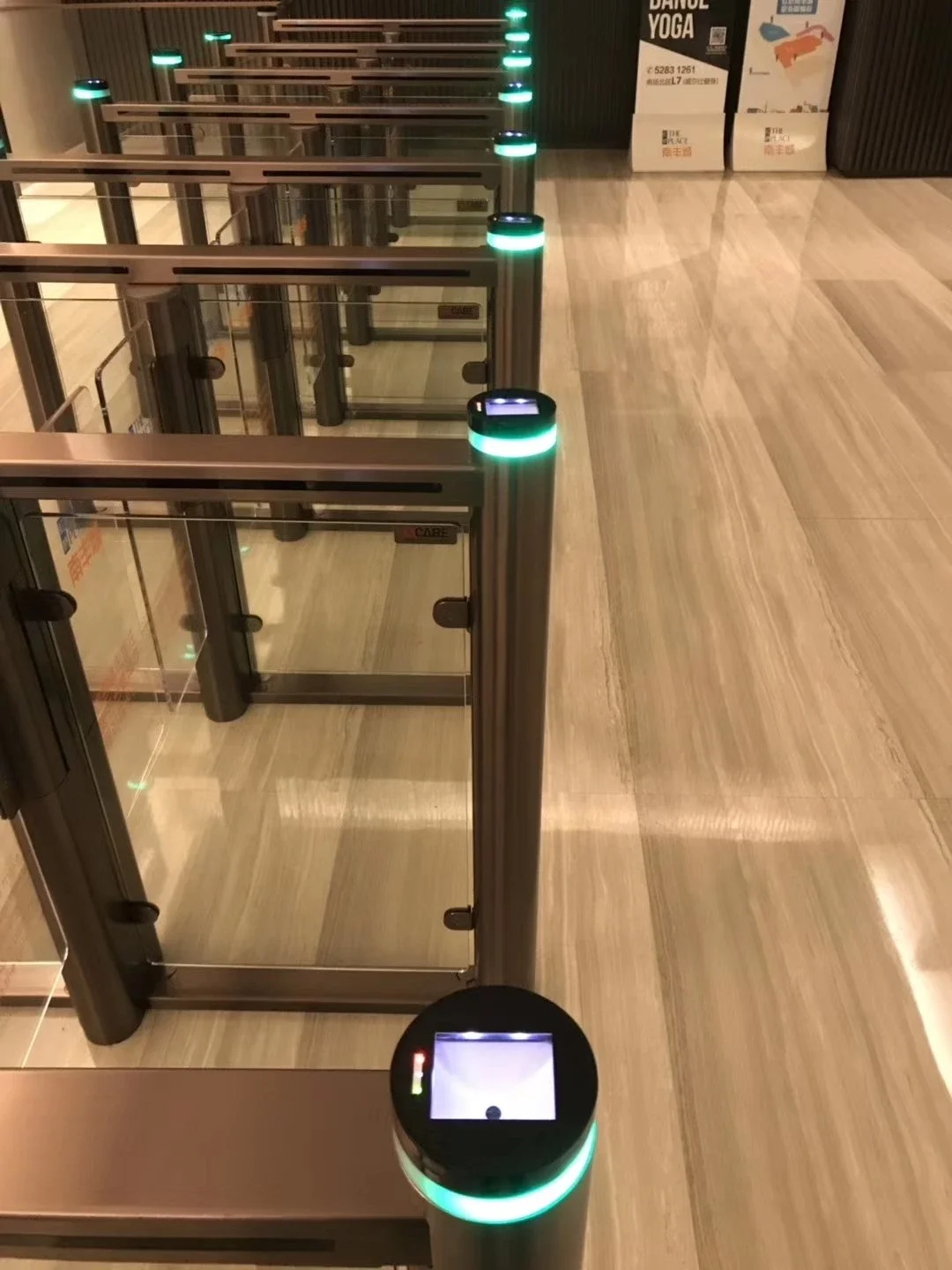

QR code scanning and card swiping module can be easily embedded into various devices as code scanning and reading component applications, such as autonomous cash register, bus code scanning and payment machine, ticket checking machine, automatic vending machine, access control gate and other scenes using QR code scanning and recognition.
